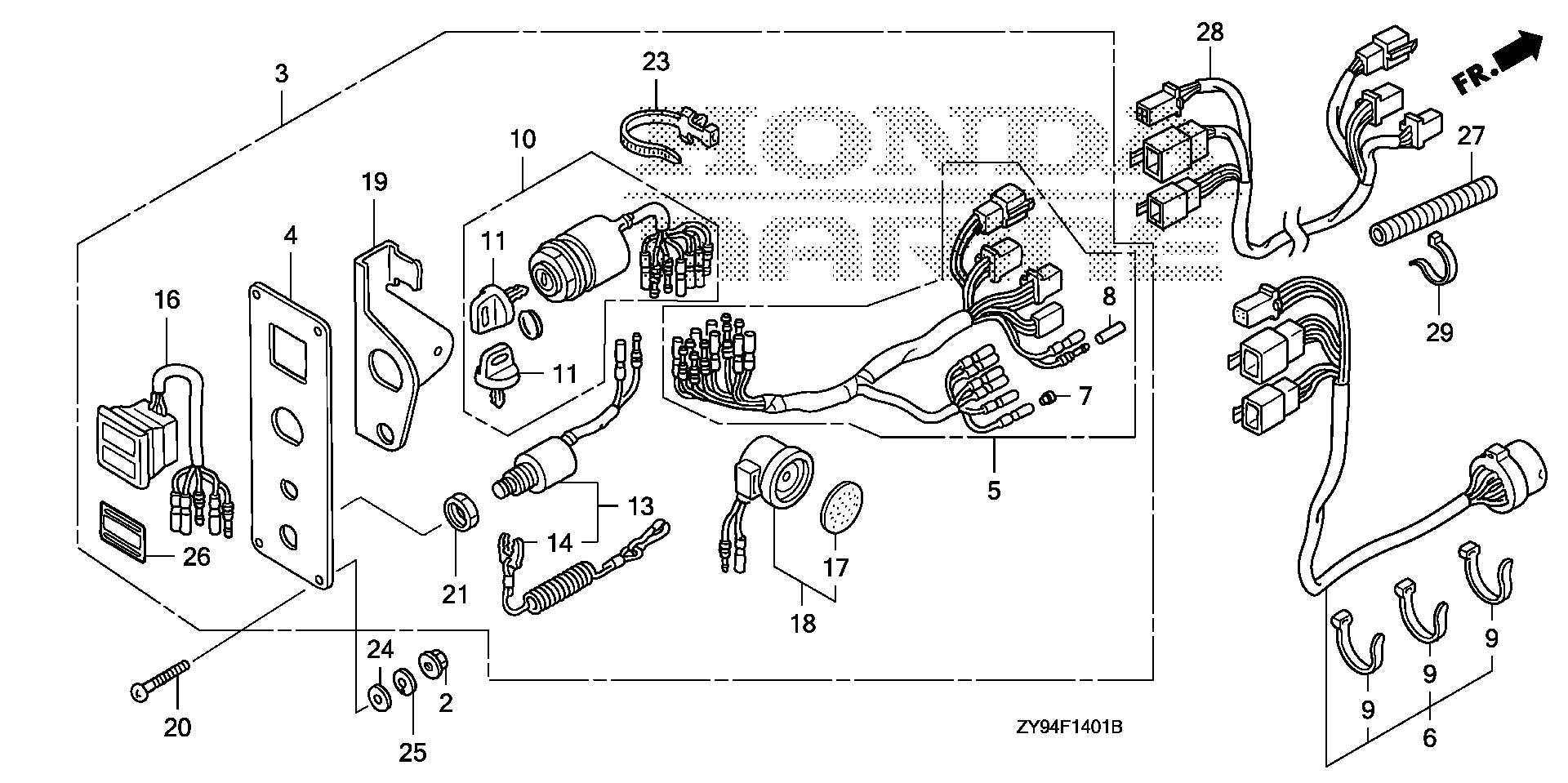

Mid - Large Outboard Engines (25 - 250hp) BF BF75 BF75DK0 LRTA BBAJ-1000001-9999999 CONTROL PANEL (DUAL) (2-LED) - Alvarado Marine & Power Equipment

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
2
Part Number
18334-MT8-770
Description
NUT, FLANGE (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.58

Ref No
3
Part Number
32340-ZW5-506
Description
PANEL ASSY., CONTROL (2-LED)
Serial Range
1000001 - 9999999
Qty
Price
$253.68

Ref No
4
Part Number
32346-ZW1-505
Description
PANEL, CONTROL
Serial Range
1000001 - 9999999
Qty
Price
$23.80

Ref No
5
Part Number
32545-ZW1-V03
Description
HARNESS ASSY., SWITCH PANEL
Serial Range
1000001 - 9999999
Qty
Price
$110.08

Ref No
6
Part Number
32580-ZW2-D01
Description
CABLE ASSY., SWITCH PANEL
Serial Range
1000001 - 9999999
Qty
Price
$197.58

Ref No
7
Part Number
32823-ZV5-003
Description
PLUG, CONNECTOR (INNER)
Serial Range
1000001 - 9999999
Qty
Price
$3.18

Ref No
8
Part Number
32824-ZV5-003
Description
PLUG, CONNECTOR (OUTER)
Serial Range
1000001 - 9999999
Qty
Price
$3.40

Ref No
9
Part Number
32901-952-770
Description
TIE, CABLE (2.4X92) (NATURAL)
Serial Range
1000001 - 9999999
Qty
Price
$2.38

Ref No
10
Part Number
35100-ZV5-003
Description
SWITCH ASSY., COMBINATION
Serial Range
1000001 - 1004284
Qty
Price
$135.12

Ref No
10
Part Number
35100-ZV5-013
Description
SWITCH ASSY., COMBINATION
Serial Range
1004285 - 9999999
Qty
Price
$92.54

Ref No
11
Part Number
35110-ZV5-003
Description
KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY)
Serial Range
1000001 - 1004284
Qty
Price
$7.86

Ref No
13
Part Number
36180-ZV5-033
Description
SWITCH ASSY., EMERGENCY STOP
Serial Range
1004285 - 9999999
Qty
Price
$61.78

Ref No
14
Part Number
36182-ZV4-651
Description
WIRE, EMERGENCY
Serial Range
1000001 - 9999999
Qty
Price
$20.04

Ref No
16
Part Number
37210-ZW1-702
Description
LAMP ASSY., INDICATION (2-LED)
Serial Range
1000001 - 9999999
Qty
Price
$129.70

Ref No
17
Part Number
38403-341-672
Description
PLATE, TURN SIGNAL BUZZER
Serial Range
1000001 - 9999999
Qty
Price
$5.28

Ref No
18
Part Number
38410-ZV5-003
Description
BUZZER, WARNING
Serial Range
1000001 - 9999999
Qty
Price
$61.04

Ref No
19
Part Number
38414-ZW1-V02
Description
BRACKET, BUZZER
Serial Range
1000001 - 9999999
Qty
Price
$34.40

Ref No
20
Part Number
90109-ZW5-000
Description
SCREW, PAN (5X40)
Serial Range
1000001 - 9999999
Qty
Price
$1.30

Ref No
21
Part Number
90302-921-000
Description
NUT, HEX. (16MM)
Serial Range
1000001 - 9999999
Qty
Price
$4.46

Ref No
23
Part Number
90649-SC2-003
Description
BAND, WIRE HARNESS (150MM) (NATURAL)
Serial Range
1000001 - 9999999
Qty
Price
$7.22

Ref No
24
Part Number
94103-05400
Description
WASHER, PLAIN (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.08

Ref No
25
Part Number
94111-05400
Description
WASHER, SPRING (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.96

Ref No
26
Part Number
87120-ZW5-000
Description
MARK, SWITCH PANEL
Serial Range
1000001 - 9999999
Qty
Price
$16.10

Ref No
27
Part Number
17736-ZW1-000
Description
TUBE, CORRUGATE (28MM)
Serial Range
1000001 - 9999999
Qty
Price
$4.16

Ref No
28
Part Number
32570-ZY3-900
Description
CABLE ASSY., REMOTE CONTROL EXTENSION
Serial Range
1000001 - 9999999
Qty
Price
$163.24

Ref No
29
Part Number
91058-MG9-681
Description
BAND, SELF-LOCK
Serial Range
1000001 - 9999999
Qty
Price
$2.30
