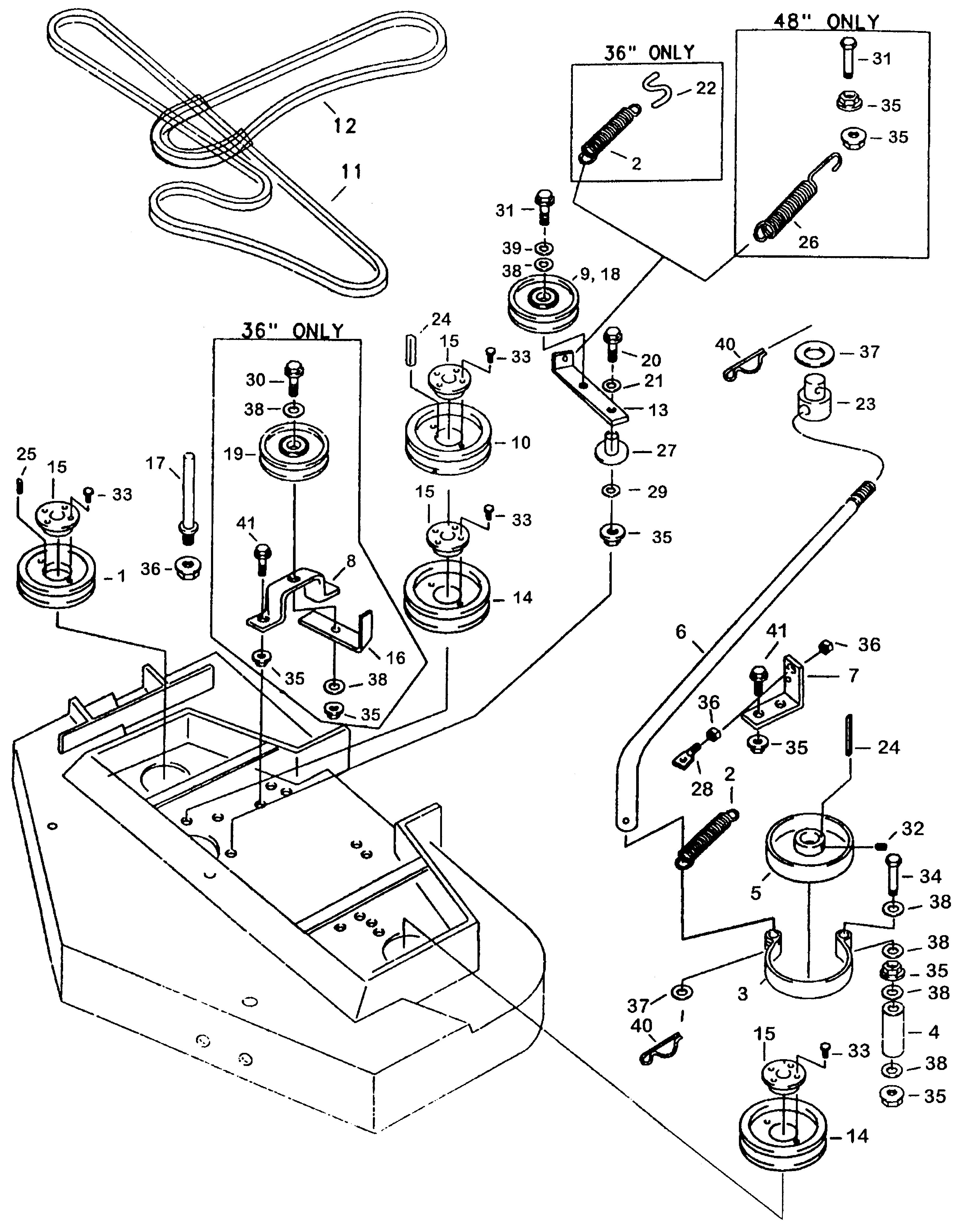

Commercial Mowers (36" - 48") CD CD7048 CD7048K1 CCD1 CCD1-2000001-9999999 CUTTERDECK DRIVE - Alvarado Marine & Power Equipment

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
22417-VE4-013
Description
PULLEY, PUMP DRIVE
Serial Range
1000001 - 9999999
Qty
Price
$80.84

Ref No
2
Part Number
22567-VE4-010
Description
SPRING, TENSIONER
Serial Range
1000001 - 9999999
Qty
Price
$11.16

Ref No
3
Part Number
75120-VE4-003
Description
BAND, BRAKE
Serial Range
1000001 - 9999999
Qty
Price
$58.62

Ref No
4
Part Number
91561-VE4-003
Description
COLLAR B, SPACER
Serial Range
1000001 - 9999999
Qty
Price
$23.90

Ref No
5
Part Number
75140-VE4-003
Description
DISK, FRICTION (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$35.28

Ref No
6
Part Number
75196-VE4-L00
Description
ROD C, P.T.O.
Serial Range
1000001 - 9999999
Qty
Price
$27.52

Ref No
7
Part Number
76124-VE4-L00
Description
PLATE, SPRING HOOK
Serial Range
1000001 - 9999999
Qty
Price
$54.24

Ref No
10
Part Number
76141-VE4-013
Description
PULLEY, DRIVEN
Serial Range
1000001 - 9999999
Qty
Price
$135.10

Ref No
11
Part Number
76181-VE4-701
Description
V-BELT, BLADE
Serial Range
1000001 - 9999999
Qty
Price
$81.18

Ref No
12
Part Number
76182-VE4-L00
Description
V-BELT, DECK
Serial Range
1000001 - 9999999
Qty
Price
$51.28

Ref No
13
Part Number
76218-VE4-003
Description
ARM, IDLER
Serial Range
1000001 - 9999999
Qty
Price
$18.66

Ref No
14
Part Number
76222-VE4-013
Description
PULLEY B, BLADE
Serial Range
1000001 - 9999999
Qty
Price
$143.38

Ref No
15
Part Number
76223-VE4-000
Description
BORE BUSH (25MM)
Serial Range
1000001 - 9999999
Qty
Price
$32.08

Ref No
17
Part Number
76243-VE6-L00
Description
GUIDE C, BELT
Serial Range
1000001 - 9999999
Qty
Price
$19.04

Ref No
18
Part Number
76246-VE4-701
Description
PULLEY, TENSION
Serial Range
1000001 - 9999999
Qty
Price
$23.72

Ref No
20
Part Number
90110-VE4-003
Description
BOLT A, SHOULDER
Serial Range
1000001 - 9999999
Qty
Price
$6.56

Ref No
21
Part Number
90505-VE4-003
Description
WASHER, BELLEVILLE (1/2")
Serial Range
1000001 - 9999999
Qty
Price
$1.78

Ref No
23
Part Number
90752-VE4-003
Description
PIN, PIVOT
Serial Range
1000001 - 9999999
Qty
Price
$6.98

Ref No
24
Part Number
90754-VE4-003
Description
KEY A, DRIVEN PULLEY
Serial Range
1000001 - 9999999
Qty
Price
$4.68

Ref No
25
Part Number
90772-VE4-000
Description
KEY, SQUARE (1/4"X1/4"X1 1/4")
Serial Range
1000001 - 9999999
Qty
Price
$3.68

Ref No
26
Part Number
76122-VE6-L00
Description
SPRING, TENSIONER ARM (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
27
Part Number
91560-VE4-003
Description
BUSHING, SNAP
Serial Range
1000001 - 9999999
Qty
Price
$3.76

Ref No
28
Part Number
90101-VE4-000
Description
BOLT, SPRING ADJUSTER
Serial Range
1000001 - 9999999
Qty
Price
$3.30

Ref No
29
Part Number
90507-VE4-003
Description
WASHER (5/16")
Serial Range
1000001 - 9999999
Qty
Price
$1.58
