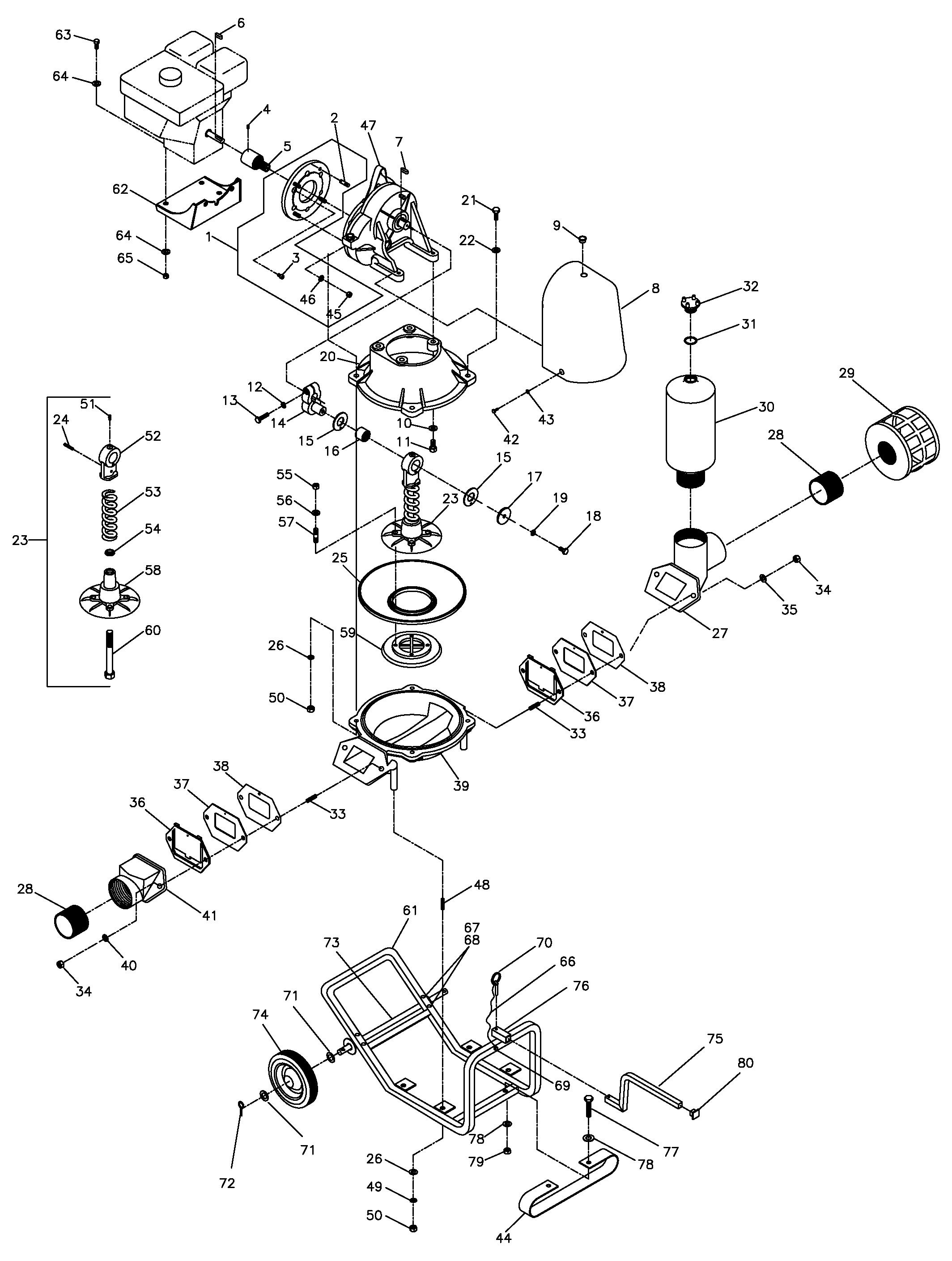

Water Pumps WDP WDP30 WDP30XK1 AT WZCA-6100001-9999999 CASING AND COMPONENTS (WDP30XK1) - Alvarado Marine & Power Equipment

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
Q14-0000-001A
Description
ADAPTER, ENGINE
Serial Range
1000001 - 9999999
Qty
Price
$142.24

Ref No
2
Part Number
Q11-0000-332
Description
STUD
Serial Range
1000001 - 9999999
Qty
Price
$251.08

Ref No
2
Part Number
Q14-0000-002
Description
STUD (10X1.5X40) (W/NUT)
Serial Range
1000001 - 9999999
Qty
Price
$251.08

Ref No
3
Part Number
H62-0001-108
Description
SCREW, ALLEN
Serial Range
1000001 - 9999999
Qty
Price
$0.08

Ref No
3
Part Number
Q14-0000-003
Description
SCREW, ALLEN (8X1.25X15)
Serial Range
1000001 - 9999999
Qty
Price
$0.08

Ref No
4
Part Number
H62-0000-004
Description
SCREW SET (8MX1.25X10)
Serial Range
1000001 - 9999999
Qty
Price
$2.42

Ref No
5
Part Number
Q14-0000-005A
Description
PINION
Serial Range
1000001 - 9999999
Qty
Price
$166.88

Ref No
6
Part Number
M51-0KEY-187
Description
KEY STOCK (3/16X1)
Serial Range
1000001 - 9999999
Qty
Price
$13.90

Ref No
7
Part Number
Q14-0000-022
Description
KEY
Serial Range
1000001 - 9999999
Qty
Price
$0.84

Ref No
8
Part Number
Q14-0000-035H
Description
COVER *R1* (RED)
Serial Range
1000001 - 9999999
Qty
Price
$151.94

Ref No
9
Part Number
Q14-0000-037
Description
PLUG, COVER (#35)
Serial Range
1000001 - 9999999
Qty
Price
$2.04

Ref No
10
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
10
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
10
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
10
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
10
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
10
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
11
Part Number
H62-0001-067
Description
BOLT, HEX.
Serial Range
1000001 - 9999999
Qty
Price
$3.10

Ref No
12
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
12
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
12
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
13
Part Number
Q14-0000-042
Description
BOLT, HEX. (10X1.5X40)
Serial Range
1000001 - 9999999
Qty
Price
$2.22

Ref No
14
Part Number
Q14-0000-043
Description
CRANK (3" PUMP)
Serial Range
1000001 - 9999999
Qty
Price
$184.22

Ref No
15
Part Number
Q14-0000-044
Description
WASHER, FIBER
Serial Range
1000001 - 9999999
Qty
Price
$13.46

Ref No
16
Part Number
M55-TAF283730
Description
BEARING, CRANK
Serial Range
1000001 - 9999999
Qty
Price
$108.28

Ref No
17
Part Number
Q14-0000-047
Description
COVER, CONNECTING ROD BUSHING
Serial Range
1000001 - 9999999
Qty
Price
$37.54

Ref No
18
Part Number
H62-0001-055
Description
BOLT, HEX.
Serial Range
1000001 - 9999999
Qty
Price
$1.82

Ref No
19
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
19
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
19
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
20
Part Number
Q14-0000-050A
Description
CASE, MOUNTING (UPPER) (ALUMINUM)
Serial Range
1000001 - 9999999
Qty
Price
$277.82

Ref No
21
Part Number
Q14-0000-051
Description
BOLT, HEX. (12X1.75X50)
Serial Range
1000001 - 9999999
Qty
Price
$1.76

Ref No
22
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
22
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
22
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
22
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
22
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
22
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
23
Part Number
Q14-0000-218A
Description
ROD, CONNECTING
Serial Range
1000001 - 9999999
Qty
Price
$493.58

Ref No
24
Part Number
Q14-0000-055
Description
NIPPLE, GREASE
Serial Range
1000001 - 9999999
Qty
Price
$1.86

Ref No
25
Part Number
Q14-0000-056H
Description
DIAPHRAGM, NEOPRENE
Serial Range
1000001 - 9999999
Qty
Price
$206.12

Ref No
26
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
26
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
26
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
26
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
26
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
26
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
26
Part Number
Q14-0000-059
Description
WASHER, FLAT (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
27
Part Number
Q14-0000-060A/NPT
Description
PORT, SUCTION NPT (3")
Serial Range
1000001 - 9999999
Qty
Price
$482.40

Ref No
28
Part Number
W67-0001-089F
Description
NIPPLE, FACED (3")
Serial Range
1000001 - 9999999
Qty
Price
$46.98

Ref No
29
Part Number
M51-0000-080
Description
STRAINER, TRASH (3" SQUARE HOLE)
Serial Range
1000001 - 9999999
Qty
Price
$48.06

Ref No
30
Part Number
Q14-0000-061H/NPT
Description
CHAMBER, AIR NPT (3")
Serial Range
1000001 - 9999999
Qty
Price
$375.34

Ref No
31
Part Number
Q14-061L430
Description
O-RING, AIR CHAMBER PLUG
Serial Range
1000001 - 9999999
Qty
Price
$0.86

Ref No
32
Part Number
Q14-061L44
Description
PLUG, AIR CHAMBER (BRONZE)
Serial Range
1000001 - 9999999
Qty
Price
$21.72

Ref No
33
Part Number
Q11-0000-333
Description
STUD
Serial Range
1000001 - 9999999
Qty
Price
$10.80

Ref No
34
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
34
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
34
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
35
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
35
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
35
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
35
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
35
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
35
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
35
Part Number
Q14-0000-063
Description
WASHER, FLAT (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
35
Part Number
Q14-0000-063
Description
WASHER, FLAT (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
36
Part Number
Q14-0000-065H
Description
CLAPPET, NEOPRENE
Serial Range
1000001 - 9999999
Qty
Price
$90.28

Ref No
37
Part Number
Q14-0000-065WP
Description
WEARPLATE, STAINLESS STEEL
Serial Range
1000001 - 9999999
Qty
Price
$136.76

Ref No
38
Part Number
Q14-0000-065P
Description
GASKET, WEARPLATE PAPER
Serial Range
1000001 - 9999999
Qty
Price
$23.48

Ref No
39
Part Number
Q14-0000-068A
Description
CASE (LOWER) (ALUMINUM)
Serial Range
1000001 - 9999999
Qty
Price
$1,053.50

Ref No
40
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
40
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
40
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
40
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
40
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
40
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
40
Part Number
Q14-0000-075
Description
WASHER, FLAT (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
41
Part Number
Q14-0000-076A/NPT
Description
PORT, DISCHARGE (3")
Serial Range
1000001 - 9999999
Qty
Price
$286.52

Ref No
42
Part Number
Q14-0000-077
Description
BOLT, HEX. (8x1.25x15)
Serial Range
1000001 - 9999999
Qty
Price
$1.98

Ref No
43
Part Number
94101-08800
Description
WASHER, PLAIN (8MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.96

Ref No
44
Part Number
Q14-0000-069
Description
SPRING, FRAME
Serial Range
1000001 - 9999999
Qty
Price
$67.06

Ref No
45
Part Number
Q14-0000-116
Description
NUT (10x1.5)
Serial Range
1000001 - 9999999
Qty
Price
$0.76

Ref No
46
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
46
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
46
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
47
Part Number
Q14-0000-137
Description
TRANSMISSION, STRAIGHT TEETH (1:43)
Serial Range
1000001 - 9999999
Qty
Price
$1,108.42

Ref No
48
Part Number
Q14-0000-070A
Description
STUD, PUMP CASE MOUNTING
Serial Range
1000001 - 9999999
Qty
Price
$2.40

Ref No
49
Part Number
Q14-0000-187A
Description
WASHER, STAR (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.90

Ref No
50
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
50
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
50
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
51
Part Number
Q14-0000-213
Description
ROD END (UPPER)
Serial Range
1000001 - 9999999
Qty
Price
$116.00

Ref No
52
Part Number
Q14-0000-054
Description
ROLL PIN
Serial Range
1000001 - 9999999
Qty
Price
$1.96

Ref No
53
Part Number
Q14-0000-214
Description
SPRING, CONNECTING ROD
Serial Range
1000001 - 9999999
Qty
Price
$121.94

Ref No
54
Part Number
Q14-0000-215
Description
RING (INNER)
Serial Range
1000001 - 9999999
Qty
Price
$20.16

Ref No
55
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
55
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
55
Part Number
H62-0001-009
Description
NUT
Serial Range
1000001 - 9999999
Qty
Price
$0.48

Ref No
56
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
56
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
56
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
56
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
56
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
56
Part Number
94102-12800
Description
WASHER, PLAIN (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
56
Part Number
Q14-0000-063
Description
WASHER, FLAT (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
56
Part Number
Q14-0000-063
Description
WASHER, FLAT (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.18

Ref No
57
Part Number
Q14-0000-187
Description
STUD (12X1.75-70)
Serial Range
1000001 - 9999999
Qty
Price
$8.40

Ref No
58
Part Number
Q14-0000-219
Description
ROD END (LOWER)
Serial Range
1000001 - 9999999
Qty
Price
$236.34

Ref No
59
Part Number
Q14-0000-220
Description
FLANGE, CONNECTING ROD
Serial Range
1000001 - 9999999
Qty
Price
$201.26

Ref No
60
Part Number
Q14-0000-221
Description
BOLT, SPECIAL
Serial Range
1000001 - 9999999
Qty
Price
$35.12

Ref No
61
Part Number
Q14-DSW0806
Description
FRAME ASSY., WHEEL
Serial Range
1000001 - 9999999
Qty
Price
$484.84

Ref No
62
Part Number
Q14-0000-317
Description
BRACKET, ENGINE MOUNTING
Serial Range
1000001 - 9999999
Qty
Price
$175.66

Ref No
63
Part Number
H60-0001-048
Description
BOLT, HEX. (5/16-18X1.5")
Serial Range
1000001 - 9999999
Qty
Price
$0.22

Ref No
63
Part Number
H60-0001-048
Description
BOLT, HEX. (5/16-18X1.5")
Serial Range
1000001 - 9999999
Qty
Price
$0.22

Ref No
64
Part Number
H61-0001-018
Description
WASHER, FLAT (5/16" SAE)
Serial Range
1000001 - 9999999
Qty
Price
$0.06

Ref No
65
Part Number
H60-0001-010
Description
LOCKNUT (5/16X18") (NYLOCK)
Serial Range
1000001 - 9999999
Qty
Price
$1.26

Ref No
66
Part Number
R48-KEY-CABLE
Description
CABLE, KEY
Serial Range
1000001 - 9999999
Qty
Price
$11.36

Ref No
67
Part Number
H60-0001-048
Description
BOLT, HEX. (5/16-18X1.5")
Serial Range
1000001 - 9999999
Qty
Price
$0.22

Ref No
67
Part Number
H60-0001-048
Description
BOLT, HEX. (5/16-18X1.5")
Serial Range
1000001 - 9999999
Qty
Price
$0.22

Ref No
68
Part Number
HY-NYN-313C-ZZ
Description
NUT, NYLOCK (5/16-18) (N/A: PURCHASE STD. HARDWARE)
Serial Range
1000001 - 9999999

Ref No
69
Part Number
H63-0000-059
Description
RIVET (1/8X1/2) (N/A: PURCHASE STD. HARDWARE)
Serial Range
1000001 - 9999999

Ref No
70
Part Number
98485A133
Description
GRIP, QUICK RELEASE PIN-RING
Serial Range
1000001 - 9999999
Qty
Price
$14.46

Ref No
70
Part Number
H63-98485A133
Description
PIN, QUICK RELEASE
Serial Range
1000001 - 9999999
Qty
Price
$14.46

Ref No
71
Part Number
94102-20000
Description
WASHER, PLAIN (20MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.96

Ref No
72
Part Number
94201-40300
Description
PIN, SPLIT (4.0X30)
Serial Range
1000001 - 9999999
Qty
Price
$1.00

Ref No
73
Part Number
Q14-DSW0808
Description
SHAFT, AXLE
Serial Range
1000001 - 9999999
Qty
Price
$138.92

Ref No
74
Part Number
42710-899-801
Description
WHEEL (GLEASON 10"X2.75"=254X70)
Serial Range
1000001 - 9999999
Qty
Price
$51.10

Ref No
75
Part Number
Q14-DSW0703
Description
HANDLE
Serial Range
1000001 - 9999999
Qty
Price
$62.18

Ref No
76
Part Number
Q14-DSW0702
Description
CLAMP, HANDLE (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
77
Part Number
H60-0001-058
Description
BOLT (3/8X1-3/4) (N/A: PURCHASE STD. HARDWARE)
Serial Range
1000001 - 9999999

Ref No
78
Part Number
HA-FWU-375C-2Z
Description
WASHER (3/8") (N/A: PURCHASE STD. HARDWARE)
Serial Range
1000001 - 9999999

Ref No
79
Part Number
HA-NYN-375C-2Z
Description
LOCKNUT, NYLOCK (3/8"-16) (N/A: PURCHASE STD. HARDWARE)
Serial Range
1000001 - 9999999

Ref No
80
Part Number
SQR-1-10-4
Description
PLUG, HANDLE CAP
Serial Range
1000001 - 9999999
Qty
Price
$41.96
